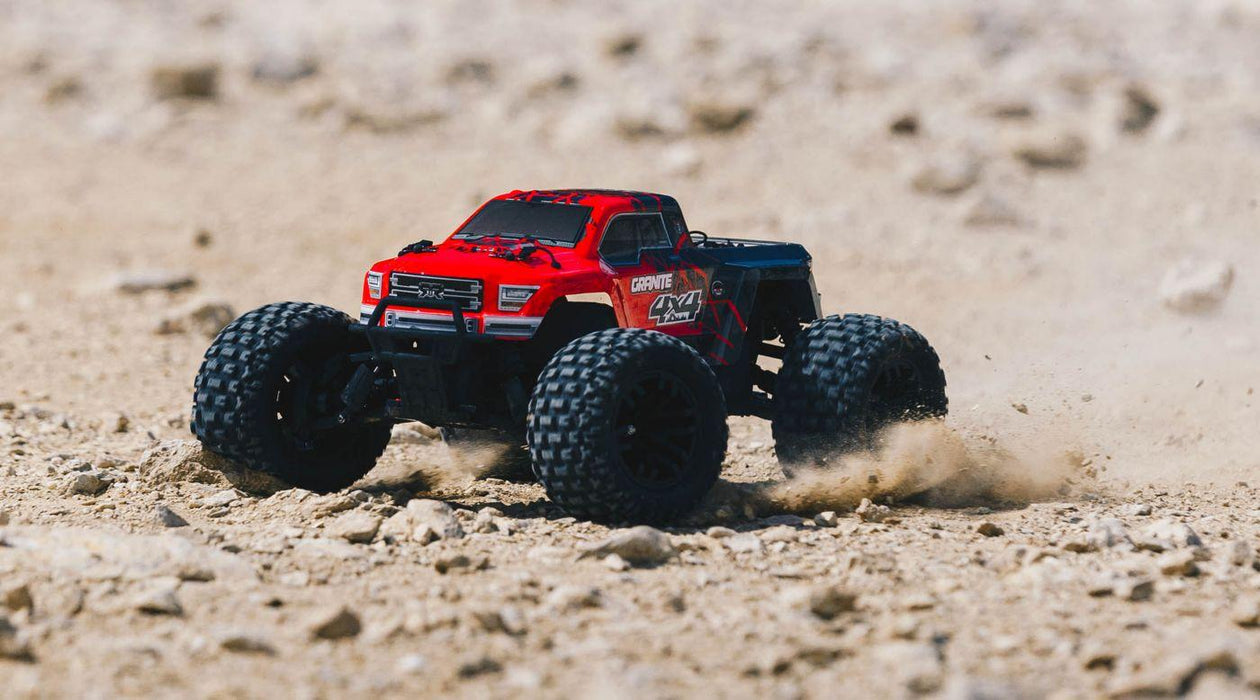

1/10 Granite 4x4 RTR MEGA MT RTR Truck

Introduction Fast and fully equipped, the 2S LiPo-compatible GRANITE™ 4X4 MEGA RTR arrives ready-to-bash in all terrain. Its MEGA 12T 550 brushed motor gives you the muscle to reach maximum speeds. Waterproof* electronics make it ready-to-run in any type of weather. dBoots® Fortress tires supply the traction to take on any surface. The included Spektrum™ STX2® radio with SRX200 receiver offers many of the same features found in high-end 2.4GHz radio systems — throttle and servo reversing, throttle and steering travel adjust, throttle limiting and more — for the ultimate control. Precision aluminum, super-tough steel and composite materials are all combined in an easy-to-maintain vehicle design that is built for action, straight from the box. Your GRANITE™ 4X4 MEGA Monster Truck will launch you straight into dirt-blasting, rock-crushing fun. Just add four AA batteries and get bashing! *Note: For details on waterproof standards, refer to the instruction manual. Features Spektrum™ STX2® 2.4GHz radio 2-Channel SRX200 waterproof* receiver Built-in 3-position throttle limiter Extended range and interference-free performance Throttle/steering reversing Throttle/steering travel adjust Throttle limiting ADS-5 waterproof* 5kg-cm servo (70 oz-inch @ 6V) MEGA 12T Brushed 550 motor MEGA waterproof* ESC IC3™ connectors (EC3™ compatible) Easy-access power module Easy-access electronics module Easy-access diff module removal front and rear Oil-filled shocks Super-smooth bearings Super-tough metal gears Tough multi-spoke black wheels and multi-terrain dBoots® Fortress tires Adjustable body mounts Adjustable ride height Extended height dirt defenders 2400mAh 8.4V 7-cell NiMH battery ADC-N7 7-cell NiMH wall charger 30 mph (48km/h) speed achievable in optimum driving conditions with optional gearing Waterproof* 2-year limited warranty *Note: For details on waterproof standards, refer to the instruction manual. Overview Powered by the MEGA 550 brushed motor system, the ARRMA® GRANITE™ 4X4 MEGA RTR Monster Truck is DESIGNED FAST, DESIGNED TOUGH — built for exciting bashing speeds and extreme, all-terrain durability! Its full-time 4WD transmission with front and rear differentials uses strong front, rear, and centerline telescopic driveshafts that can't be lost during heavy impacts, unlike dogbones. A simple, dependable, responsive steering assembly complements the ultra-reliable drive system and features a servo horn with built-in servo saver. The self-bleeding, oil-filled shocks use a tried and tested, coil-over design for simple maintenance and amazing handling. Their innovative rod end has a molded-in spring perch for extra toughness. High chassis guards limit the amount of dirt and debris that can get into the chassis tub. Shock-absorbing loops keep the front and rear bumpers secured to the chassis, offering defense against heavy impacts. The GRANITE™ 4X4 MEGA RTR Monster Truck's ingenious modular design makes chassis components easy to access for maintenance. Its power module consists of a MEGA 550 motor, motor plate, slipper clutch assembly and gear cover. The power module can be detached from the chassis, as a complete unit, by removing just one screw. With the power module removed, the slipper clutch can be reached easily for adjustments by taking out three screws that attach the gear cover. The power module design also ensures that pinion and spur gear mesh is perfect every time, using numbered holes for different pinion gear sizes. A two-piece molding screwed to the truck's chassis serves as its electronics module, containing a waterproof radio box, servo mount, and ESC tray. The radio receiver mounts inside the radio box for protection from dirt and moisture. The ultra-compact ESC is screwed to the top of the module, allowing quick access to the on/off switch, while the servo mounts to the side. All three components can be removed together, quickly and easily. The differential module houses each assembled differential unit in an innovative yoke design. Only eight screws need to be removed to release the front and rear yokes. The power module can then be detached, allowing you to pivot the gearbox cases for access to the differentials. Each differential gear case features large pitch gears that are engineered to withstand huge torque. Internal metal gears have been chosen for reliability during extreme bashing. Finally, tough, multi-spoke black wheels with dBoots® Fortress tires give the GRANITE™ 4X4 MEGA RTR effective traction for bashing on almost any terrain. Multiple battery types can be used with the hook-and-loop mounting, from 6-cell NiMH packs to a 2S block pack. Needed to Complete (4) AA Batteries What's in the Box? (1) 1/10 GRANITE™ 4X4 MEGA 550 4WD Monster Truck with: (1) ARRMA MEGA ESC (1) MEGA 12T 550 Brushed Motor with IC3™ Connectors (EC3™ compatible) (1) Spektrum™ 2.4GHz STX2® Radio and SRX200 Receiver (1) ADS-5 Servo (1) 2400mAh 8.4V 7-cell NiMH Battery (1) ADC-N7 7-cell NiMH Wall Charger (1) Product Manual Specifications Back to Top ^ Approximate Assembly Time No assembly required Ball Bearings Full set Batteries One 2400mAh 8.4V 7-cell NiMH included with IC3 battery connector Body Trimmed & painted red and black Brakes Integral with ESC Bushing Material Metal Charger ADC-N7 7-cell NiMH wall charger Chassis Molded composite Completion Level Ready-To-Run Differential Full metal straight cut gears Drivetrain 4WD Shaft Drive Final Drive Ratio 18.72 Front Shock Spring Rate 0.8N/mm Gear Pitch 48-Pitch Ground Clearance 1.85" (47mm) Height 7.7" (196mm) Length 16.9" (429mm) Max Battery Dimensions 6.14 x 2.01 x 1.9" (156 x 51 x 48mm) with battery mounting blocks removed Motor Size 550 Motor Type 550 size 12T brushed, Brushed Pinion 14T Radio Spektrum STX2 2.4GHz w/SRX200 waterproof receiver Rear Shock Spring Rate 0.6N/mm Servos One ADS-5 waterproof 70 oz-in (5 kg-cm) @ 6V, 25T spline Shock Type Oil-filled composite body Size/Scale 1/10 Speed Control MEGA waterproof with IC3 battery connector Spur Gear 91T Suspension Front & rear double wishbone Tire Diameter 5" (127mm) Tire Tread dBoots Fortress multi-terrain Vehicle Type Monster Truck, Monster truck Water-Resistant Yes Weight 6.5lbs (2.9kg) Wheel Diameter 2.8" (72mm) Wheel Hex Size 14mm Hex Wheel Type Nylon one-piece multi-spoke, black in color Wheel Width 2.1" (53mm) Wheelbase 11.3" (287mm) Width 13.5" (342mm)
