2344 Ripper Sensorless BL Motor IBL 36/39-540C 3900kV
Sold out
$49.99
SKU TTR2344
TECH NOTES

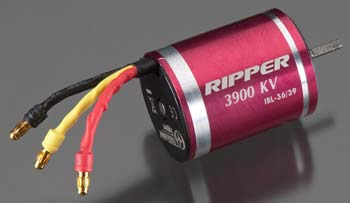

This is the Thunder Tiger Ripper 36/39-540C Sensorless Brushless Motor.
FEATURES: For RC vehicle applications
Oversized precision sealed ball bearings
540 type 3.17mm hardened steel shaft
Offers up to 25-30% longer run times with excellent starting torque
and smooth acceleration
INCLUDES: Thunder Tiger Ripper 36/39-540C IBL Brushless Motor with Instructions
REQUIRES: Compatible brushless ESC
SPECS: Voltage Range: 6-8 cells
RPM Per Volt: 3900 RPM/V
Dimensions: 1.4 x 1.8" (36 x 46mm)
Shaft Diameter: 0.12" (3.17mm)
Max. Efficiency Current: 10 - 45A
Max. Surge Current: 50A/60s
Internal Resistance: 16 milliohms
Weight: 6.7oz (190g)
jxs 05/17/11
ir/jxs
BOX DIMENSIONS: 4.00" W. X 2.25" H. X 5.88" L.
BOX WEIGHT: .83 LBS.
