3024 XL 2.5 ESC Waterproof

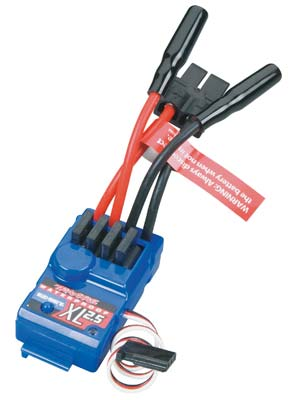

TECH NOTES This is the XL-2.5 Electronic Speed Control from Traxxas. FEATURES: Simple one-button setup Patent-pending training mode Forward/Reverse/Brake Microprocessor control Waterproof design Efficient low-loss MOSFET design Traxxas high-current connector Thermal shutdown protection INCLUDES: One XL-2.5 Electronic Speed Control REQUIRES: Installation in vehicle SPECS: Motors: Brushed Motor Limit: 10-turn (380 size) BEC Voltage: 6.0 Volts DC Transistor Type: MOSFET On-Resistance: 0.008 ohms PWM Frequency: 2300Hz Motor/Battery Wiring: 16-Gauge Weight: 33g (1.16oz) Thermal Protection: Thermal shutdown Motor Connectors: Bullet connectors Input Voltage: 4-8 cells (4.8V to 9.6V DC) Length: 1.83" (46.5mm) Width: 1.04" (26.5mm) Height: 0.85" (21.6mm) cnh 7/6/09 ir/jxs BOX DIMENSIONS: 3.13" W. X 2.25" H. X 5.50" L. BOX WEIGHT: .21 LBS.
