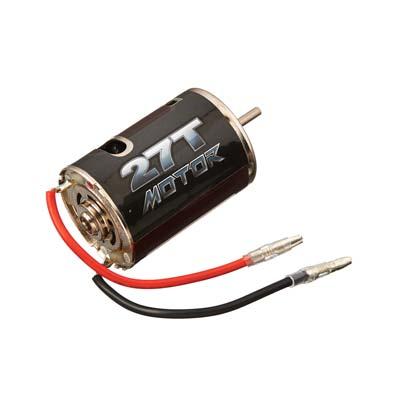

540 Crawler Brushed Motor, 27T (Good Replacement for Axail 540 27T Motor)
Sold out
$13.99
SKU RC4ZE0067
This is the RC4WD 27T Brushed Crawler Motor.
FEATURES: Tuned for rock climbing and scale driving
Chrome plated steel case
Built-in capacitor for minimizing glitch
High torque magnet and rotor
Polished bushings
Stand up brushes
INCLUDES: RC4WD 27T Brushed Crawler Motor with Wire Leads and Bullet Connectors
REQUIRES: ESC compatible with motor
SPECS: Case Diameter: 1.39" (35.5mm)
Length: 1.96" (50mm)
Output Shaft Length: 0.43" (11mm)
Output Shaft OD: 0.12" (3.1mm)
Weight: 5.57oz (158g)
No Load RPM @ 7.2V: 15,000 +10% 1.2A current
Rated Load RPM @ 7.2V: 13,600 +10% 5.02A current
Operating Temperature Range: 14° to 140°F (-10° to 60°C)
Shaft End Play: 0.1mm to 0.5mm
Noise Level: <78DB
