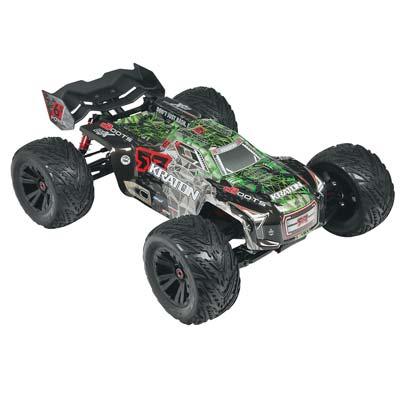

AR106018 Kraton 6S BLX 1/8 4WD Monster RTR Red Black

This is the Electric Powered, 2.4GHz Radio Controlled 1/8th scale, Ready to Run Kraton 6S BLX Speed Truck from ARRMA. **The Green version, ARAD81GG, and Blue version ARAD81BB were replaced by the** **Green and Black version, ARAD81GL arriving early June 2016** **Red and Black version, ARAD81RL arriving in late June 2016.** FEATURES: Chassis: 0.12" (3mm) thick aluminum, black in color Drive: Four wheel with CVD driveshafts Radio: Tactic TTX300 2.4GHz 2-channel with ADS-15M waterproof steering servo, 208oz/in (15kg/cm) torque Motor: BLX4074 2050Kv 4-pole brushless (ARAG2000) ESC: Waterproof BLX185 150A 6S with built-in cooling fan, and male XT90 connector Shocks: 16mm red anodized aluminum body, oil filled Shock Towers: 0.20" (5mm) thick aluminum, black in color Suspension: Pivot ball with anti-roll bar Differentials: Three metal gear Roll Cage: Composite internal Body: Trimmed and painted polycarbonate, nylon rear wing Motor Mount: Aluminum Battery Holder: Adjustable hook and loop straps, holds two 2S, or two 3S LiPo cells Tires: dBoots Minokawa, width: 3.3" (85mm), diameter: 6.2" (157mm) Wheels: Five split spoke, black in color 17mm hex, diameter: 3.8" (97mm), width 2.6" (66mm) Camber: Adjustable front and rear, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis Warranty: Two year limited warranty beginning at date of purchase INCLUDES: RTR Kraton 6S BLX Speed Truck with Painted Body, 2.4GHz Radio, Waterproof Steering Servo and Receiver Box, BLX185 ESC, 2050Kv Brushless Motor, Instruction Manual. two XT90 Battery Connectors and Bridging Wire for single pack use REQUIRES: AA Batteries: Four for transmitter LiPo Battery: Two 2-3S 5000mAh 35C minimum LiPo with XT90 connector, Duratrax 11.1V 5000mAh 35C batteries (DTXC1969) recommended, or one 4-6S LiPo battery Battery Charger: To match selected battery LiPo charging sack, building & track equipment SPECS: Vehicle- _ Length: 24 in (590mm) Width: 18.5 in (470mm) Height: 7.5 in (195mm) Wheelbase:14.9 (378mm) Ground Clearance: 1.3 in (33mm) Weight: 177oz (5kg) Maximum Battery Tray Dimensions: 6.2 x 2.0 x 1.8" (158 x 51 x 46mm) Body- Length: 18.6" (472mm) Width: 8" (203mm) behind front wheels, narrowest point Width: 10.03" (255mm) at rear wheels, widest point Height: 6.25" (159mm) COMMENTS: Available in the following body color schemes; Green and Black, ARAD81GL Red and Black, ARAD81RL COMMENTS: For replacement ball bearings use: Qty. Size Location Qty. Bearing Set 2 15x21mm F&R Inner Hubs 1 ARAC3162 2 8x16mm F&R Inner Hubs 1 ARAC3156 2 5x10mm Idler Gear 1 ARAC3200 2 5x10mm Input Shaft 1 ARAC3200 2 10x15mm Diff Gear 1 ARAC3202 6 8x16mm Fr, Ctr & R Diffs 3 ARAC3156 ajw 1-30-14 jAM 11/03/15 ir/jxs BOX DIMENSIONS: 19.38" W. X 10.13" H. X 28.75" L. BOX WEIGHT: 17.06 LBS. ACCESSORIES This is the 1/8 scale RTR Kraton 6S BLX Speed Truck from Arrma. FEATURES: 2050kV brushless motor, 150A waterproof ESC w/fan, aluminum shock towers, 16mm oil-filled aluminum body shocks, metal gear diffs, adjustable battery tray, tough composite suspension arms, painted & trimmed body REQUIRES: Two 2-3S LiPo batteries, charger, charging bag, track & maint. equip.
