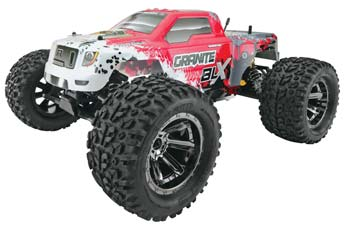

Arrama Granite BLX Red Truck 2WD Truck
Sold out
$359.99
SKU ARAD25RR
This is the Brushless Electric Powered, 2.4GHz Radio Controlled 1/10 scale,
RTR 2013 Granite BLX Monster Truck from Arrma.
Battery and Charger Included.
**Additional Technical Info Will Be Added When It Becomes Available.**
FEATURES: Chassis: Twin vertical aluminum plate
with double chassis rails and alloy front chassis plate, batteries
fit under chassis-no need to remove body to change batteries
Drive: Rear wheel with steel driveshafts and axles
Motor: 4-pole 3600kV brushless, 540 size
Radio: ATX100 2.4GHz 2-channel with lightweight ARX100 receiver,
with trims, servo reversing & dual-rate steering
Electronic Speed Control: Waterproof BLX80 ESC with LiPo cutoff
Receiver Box: Waterproof and dust proof
Battery: 6-cell 5000mAh NiMH
Battery Charger: ADC-N1 wall type charger
Body: Trimmed and painted "Hardcore" polycarbonate body
Transmission: Metal gear, brushless ready
Slipper Clutch: Machined alloy gears, adjustable for different track
conditions
Suspension: Fully independent
Differential: Metal gear, oil filled
Shocks: Composite body oil-filled
Tires: dBoots Copperhead with dBoots foam inserts
Wheels: Seven spoke monster truck style, gun metal in color
Camber: Adjustable front and rear, camber refers to the angle of the
tops of the tires from vertical when viewed from front or behind
vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to
the chassis
Steering: Bellcrank type with servo saver
Warranty: Two year limited beginning at date of purchase
INCLUDES: RTR Granite Monster Truck with Blue Body and 2.4GHz Radio, ESC,
Steering Servo, Brushless Motor, Tires, Wheels, Foam Inserts,
Decals and Instruction Manual
REQUIRES: AA Batteries: Four for transmitter
Building and track equipment
SPECS: Vehicle-
Length: 16.5" (420mm)
Width: 13.4" (340mm)
Height: 7.9" (200mm)
Wheelbase: 11.4" (290mm)
Ride Height: 1.9" (48mm)
Weight: 4.5lbs (205kg) without battery
Body-
Length: 16" (406mm)
Width: 6.1" (154mm) at rear wheels, widest point
Height: 4.3" (110mm)
COMMENTS: For replacement or to upgrade to ball bearings use:
Qty. Size Location Qty. Bearing Set
4 5x10mm Fr Hubs 2 DTXC1535
4 5x13mm Rear Hubs 2 ARAC3201
2 5x10mm Idler Gear 1 DTXC1535
2 5x10mm Input Shaft 1 DTXC1535
2 10x15mm Diff Gear 1 DTXC1595
