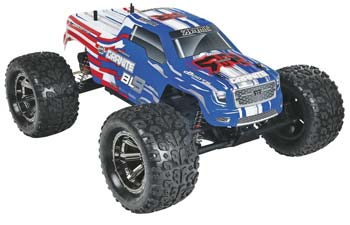

Arrma Granite BLS 2/NiMH Blue
Sold out
$249.99
SKU ARAD42BB
This is the electric powered, 2.4GHz radio controlled 1/10 scale, ready to run
BLS Granite Monster Truck from Arrma.
Battery and Charger Included.
FEATURES: Upgrades from the MEGA brushed vehicles include:
-540 size, 4000kV brushless motor
-Brushless ESC with push button programming and 35A continuous/
180A burst ratings
-Strip-resistant, hex head hardware throughout
-Composite motor mount
-Waterproof ADS-5 steering servo
Chassis: Composite monocoque batteries fit under chassis-no need to
remove body to change batteries
Drive: Rear wheel with steel driveshafts and axles
Motor: Brushless 540 size, 4000kV brushless
Pinion Gear: Steel, 48 pitch 18 tooth
Spur Gear: Composite plastic 48 pitch 87 tooth
Radio: ATX100 2.4GHz 3-channel with lightweight ARX100 receiver,
Steering Servo: Waterproof ADS-5
Electronic Speed Control: Brushless compatible with push button
programming and 35A continuous/180A burst ratings w/ Dean's
connector
Battery: 3300mAh 8.4V 7-cell stick NiMH
Battery Charger: Wall type charger
Receiver Box: Splash and dust proof
Body: Trimmed and printed polycarbonate body
Transmission: Lightweight composite gears
Slipper Clutch: Alloy plates
Suspension: Fully independent
Differential: Metal internal gears, oil filled
Shocks: Oil-filled composite body
Tires: dBoots Copperhead, 2.6" (66mm) wide, 2.8" (72mm) inner
diameter, 4.7" (121mm) outer diameter
Wheels: Seven spoke 1.9" (49mm) wide, 2.9" (73mm) diameter
Camber: Adjustable front and rear, camber refers to the angle of the
tops of the tires from vertical when viewed from front or behind
vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to
the chassis
Steering: Bellcrank type with composite servo saver
Warranty: Two year limited beginning at date of purchase
INCLUDES: RTR BLS Granite Monster Truck, 2.4GHz Radio, ESC, Waterproof Steering
Servo, Tires, Wheels, Foam Inserts, Battery, Charger, Decals and
Instruction Manual
REQUIRES: AA Batteries: Four for transmitter
Track and maintenance equipment
SPECS: Vehicle-
Length: 16.5" (420mm)
Width: 13.8" (340mm)
Height: 7.9" (200mm)
Wheelbase:
Ride Height:
Weight: 4.38lbs (1.99kg) without battery
Body-
Length: 16" (406mm)
Width: 6.1" (154mm) at rear wheels, widest point
5.6" (143mm) behind front wheels, narrowest point
Height: 4.3" (110mm)
COMMENTS: For replacement or to upgrade to ball bearings use:
Qty. Size Location Qty. Bearing Set
4 5x10mm Front Hubs 2 DTXC1535
2 5x10mm Rear Hubs 1 DTXC1535
2 5x13mm Rear Hubs 1 ARAC3201
2 10x15mm Differential 1 DTXC1595
2 5x10mm Gearbox 1 DTXC1535
2 10x15mm Gearbox 1 DTXC1595
