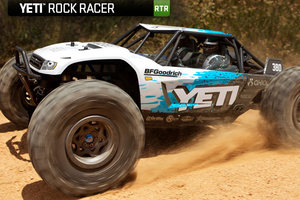

AX90026 1/10 Yeti 4wd Ready To Run Electric Rock Racer Truck

This is the 1/10 scale Ready to Run Electric Powered, Radio Controlled Yeti Rock Racer from Axial. FEATURES: Chassis: Plastic tub type with bolt-on 4 link mount for rear suspension, Drive: Four wheel, WB8 HD rear driveshaft Motor: Brushless, 3150kV, 4-pole ESC: Castle Creations Vanguard, waterproof, 3S LiPo compatible, can be programmed manually via the the Castle Link Programming Card (not included, order CSEM6300) or the Castle Link software interface (not included) Radio: Axial 2-channel AX-3 2.4GHz w/reverse & trim settings, with TSX45 151 oz-in metal gear, dual ball bearing steering servo lightweight 3-channel receiver Shocks: Aluminum body, oil filled Steering: Updated dual shear rack Transmission: Single speed with brushless motor gearing (2nd gear fixed), adjustable motor mount, 2-speed optional gear set available Slipper Clutch: Dual design uses a pad on each side of spur gear for added surface area for more precise tuning and holding power Front Suspension: Independent design allows better control direction of travel ant high speeds when one side is adjusting to road obstructions Rear Suspension: AR60 rear solid axle, multiple tuning options, sway bar, EXO suspension arms, anti squat adjustments built into four link mounts at chassis, lower links designed to hold optional dual shocks Front Bumper: New KOH style with light mounts, and compression mount Wheels: Officially licensed Walker Evans 3-piece beadlock design, black in color, adjustable breather holes, compatible with most 2.2" tires, width: 1.7" (44.6mm), diameter 2.6" (65.5mm) Tires: BF Goodrich Crawler T/A KX, width: 1.8" (47mm), inner diameter: 2.2" (56mm), outer diameter: 5.1" (130mm) Body: Molded lexan, one-piece with separate roof, scale accessories spare tire mount, scale interior with driver and passenger helmet rear cage captures upper shock mounting points and includes integrated scale fuel cell Battery Tray: Fully adjustable and easily accessible INCLUDES: RTR Yeti Rock Racer with 2.4GHz Radio, ESC, Brushless Motor, Body, Body Accessories, 32P 64P Spur Gear, 32P 16T Pinion Gear, Instruction Manual REQUIRES: Battery: 2S or 3S LiPo pack with Dean's connector Battery Charger: To match selected LiPo Battery LiPo Charging Sack, Track and Maintenance Eequipment SPECS: Vehicle, Length: 19.5" (495mm) Width: 12.3" (312mm) Height: 7.7" (195mm) Wheelbase: 14.25" (360mm) Ground Clearance: 2" (50mm) Weight: 6.51lbs (2.9kg) Body, Length: 17.2" (437mm) Width: 7.3" (185mm) Height: 5.5" (140mm) including roof COMMENTS: For Replacement Ball Bearings use: Qty. Size Location Qty. Bearing Set 2 10x15mm Front Hubs 1 DTXC1595 2 5x11mm Front Hubs 1 DTXC1547 2 10x15mm Front Gearbox 1 DTXC1595 2 5x11mm Input Shaft 1 DTXC1547 2 5x11mm Rear Diff 1 DTXC1547 2 5x11mm Rear Axles 1 DTXC1547 2 10x15mm Rear Diff 1 DTXC1595 10 5x11mm Transmission 5 DTXC1547 jxs 06/26/14 ir/jxs BOX DIMENSIONS: 14.00" W. X 12.00" H. X 24.50" L. BOX WEIGHT: 12.64 LBS. ACCESSORIES This is the Brushless Electric Powered RTR Yeti Rock Racer from Axial. FEATURES: Walker Evans beadlock wheels, 3150kV, 4-pole brushless motor, water- proof ESC, AR60 rear solid axle, dual pad slipper clutch, KOH front bumper REQUIRES: 2-3S LiPo battery w/Dean's connector, charger, charging sack, track equipment
