AXE 100 SS HELICOPTER TXR
Sold out
$139.99
SKU HMXE0825
TECH NOTES

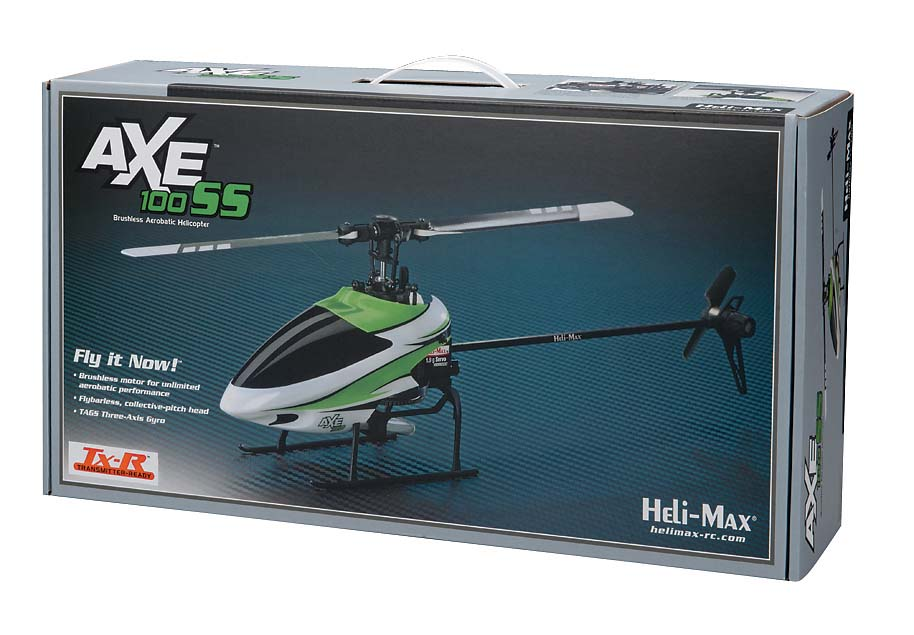

This is the brushless electric powered, radio controlled
Tx-R Heli-Max Axe 100 SS (Super Sport) Helicopter.
Ideal for 3D Aerobatics Indoors or Outdoors.
This is the Tx-R (Transmitter Ready) version that includes servos,
an ESC and receiver.
With the AnyLink SLT 2.4GHz Radio Adapter (TACJ2000) separate purchase
and the appropriate AnyLink cable
any compatible 6-channel heli aircraft transmitter
may be used to fly this helicopter
**Additional Technical Info Will Be Added When It Becomes Available.**
FEATURES: Rotor Head: 120° CCPM flybarless collective pitch rotor head
Frame: Composite plastic construction with reinforcement at key
points for added strength and rigidity
Motor: Main, 14,750kV brushless outrunner, tail motor-brushed
Servos: Rotary-drive, digital
Receiver:
Gyro: TAGs (Triple Axis Guro Stabilization) stabilizes all three
axes simultaneously and neutralizes the impact of wind and other
outside forces on handling
Electronic Speed Control: 10A with soft cut off and slow start
Battery: 3.7V 400mAh LiPo
Charger: AC powered, variable rate balancing charger
Canopy: Plastic
Tail Boom: Extended from original Axe 100 for improved tail authority
Tail Rotor: Motor driven
Warranty: Heli-Max guarantees this kit to be free from defects in
both material and workmanship at the date of purchase. This warranty
does not cover any component parts damaged by use or modification.
INCLUDES: Tx-R Heli-Max Axe 100 SS with servos, receiver, brushless
motor, LiPo battery, charger, gyro, ESC, spare main blades, tail
rotor, linkages, unbreakable landing gear, and instruction manual
REQUIRES: Tactic AnyLink SLT 2.4GHz Radio Adapter (TACJ2000) to adapt heli
transmitter (the Futaba Square, TACM0001 and JR, Spektrum, TACM0002
are included with the AnyLink adapter)
*Tactic 2.4GHz 4 or 6 channel transmitters do not require the
AnyLink adapter
SPECS: Rotor Diameter: 9.5" (242mm)
Overall Length: 12.3" (312mm)
Weight: 1.69oz (47.8g) without battery
2.12oz (60.1g) RTF weight
Blade Length: 4.13" (105mm)
Tail Rotor Diameter: 1.5" (38mm)
Height: 3.18" (81mm)
Width: 2.04" (52mm)
Gear Ratio: 8:1
jxs 04/01/13
BOX DIMENSIONS: 9.88" W. X 5.00" H. X 19.75" L.
BOX WEIGHT: 1.99 LBS.
ACCESSORIES
This is the brushless powered Tx-R Heli-Max Axe 100 SS Helicopter.
FEATURES: TAGS three-axis gyro, flybarless collective pitch rotor head,
brushless main motor, brushed tail motor, servos, receiver, unbreakable
landing gear
REQUIRES: 6-ch TX, Tactic Anylink (if not using Tactic TX)
