Nitro Star T3.0 Engine
Sold out
$99.99
SKU HPI15107

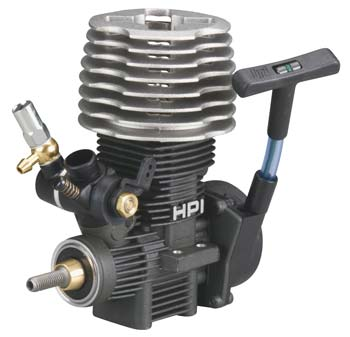

This is the HPI Nitro Star T3.0 Engine for use
with the RTR Nitro RS4 3 Evo+
FEATURES: 1-piece black crankcase
6.5mm Rotary Carb
Non-ringed/ ABC-type engine
Standard crankshaft
Side exhaust
Heatsink Head
INCLUDES: One assembled engine with glow plug
One instruction manual and sticker sheet
One air filter with instruction sheet
Three zip ties
One hex wrench
SPECS: Height from crankcase bottom to top of cylinder head: 3.8" (96mm)
Width including mounting tabs: 1.57" (40mm)
Width below mounting tabs: 1.2" (31mm)
Width between mounting holes same side: 0.43" (11mm)
Width between mounting holes opposite side: 1.2" (31mm)
Width of exhaust opening: 0.87" (22mm)
Height of exhaust opening: 0.17" (4.2mm)
Distance between muffler mounting holes 1.1" (28mm)
Crankshaft Thread Size: 1/4-28
Bore x Stroke: 16.8 x 13.6mm
Displacement: 0.18 cu in (3.01cc)
Maximum Power: 2.2PS/31,000 RPM
REQUIRES Fuel with 20%-25% Nitromethane and 18% (minimum) oil content
COMMENTS: The factory setting of the needle valves are as follows:
High speed needle: Flush with the carburetor body
Low Speed Needle: Flush with the carburetor body
