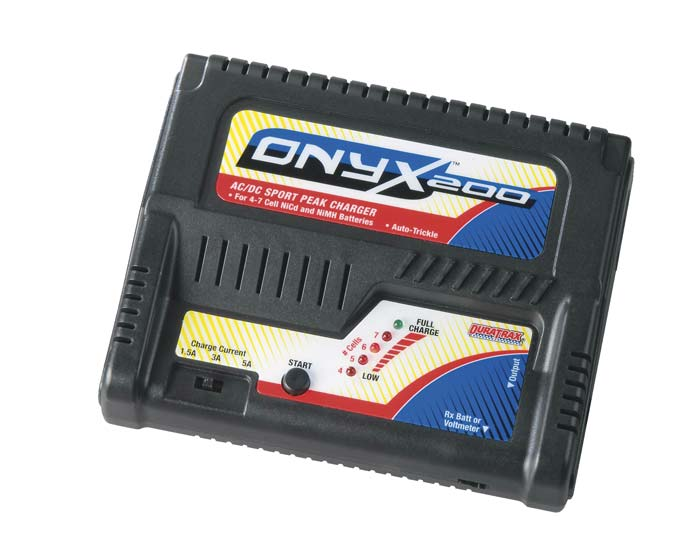

Onyx 200 AC/DC Sport Peak Charger

TECH NOTES This is the DuraTrax Onyx 200 AC/DC Sport Peak Charger with LEDs. Designed for sport electric car or boat modelers that use NiCd or NiMH batteries. FEATURES: Charges 4-7 cell NiCd or NiMH (4.8 - 8.4V) cells with a capacity range of 750 - 7500mAh Compatible with AAA size cells up to the highest capacity sub-C cells as well as 4-5 cell nitro receiver packs AC and DC input capabilities make it perfect for indoor or outdoor use Pushbutton control and five LED indicators (4 Red, 1 Green), audible tones and built-in leads for simplicity and convenience Precise peak detection algorithm with automatic TRICKLE charge fills packs completely for optimum voltage and run time Built-in jack included for charging 4 or 5 cell NiCd or NiMH receiver batteries for nitro models, or for monitoring charge voltage of battery connected to the main output with a separate digital voltmeter Audible tones and multiple LEDs for simple setup and use Lightweight switching AC power supply delivers up to 5 amps of charge current Solid state reverse polarity and current overload safety devices ensure trouble-free operation and long duration FIVE YEAR warranty (U.S.A. and Canada only) INCLUDES: DuraTrax Onyx 200 AC/DC Sport Peak Charger, DC power lead with alligator clips SPECS: AC Input: 110V AC 60Hz DC Input: 11-15V DC, built-in lead with alligator clips Battery Types: 4-7 NiCd or NiMH cells (4.8-8.4V) Battery Capacity Range: 750-7500mAh Fast Charge Current: 1.5A, 3.0A, 5.0A linear (40W max.) Fast Charge Termination: Peak detection Fast Charge Safety Timer: 90 minutes Peak Sensitivity: 8mV Auto TRICKLE Current: 1/20 fast charge setting Controls: Pushbutton, slide switch LED Indicators: 4 Red, 1 Green Audible Indicator: Indicate start, stop, errors *Output Connections: Built-in lead with Kyosho type connector Built-in jack for charging 4 or 5 cell Rx packs *Standard to Deans Ultra Male Adapter available separately (GPMM3131) *Standard to Vendetta, MiniQuake, RS4 Battery available separately (DTXC2210) Protective Devices: Solid-state reverse polarity and current overload Case Size: 5.74 x 4.60 x 1.61" (146 x 117 x 41mm) Weight: 17oz (484g) COMMENTS: For batteries using a Traxxas type connector, order the TRAC3061 adapter. jxs 1/29/08 ir/jxs updt jxs 05/24/11 BOX DIMENSIONS: 5.25" W. X 2.13" H. X 10.75" L. BOX WEIGHT: 1.42 LBS.
