S3003 SERVO STANDARD BULK
Sold out
$11.99
SKU FUTM0028

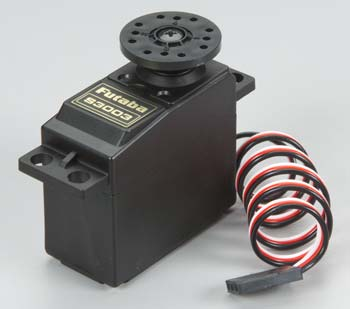

This is the FUTABA S3003 STANDARD entry level Servo w/o Accessories.
This servo can produce high current draw from your batteries.
If using NiMH or LiPo batteries, make sure they are capable
of delivering sufficient amps.
FEATURES: Lightweight servo for use in cars, boats, or where a basic servo is
needed.
Nylon gears
One year warranty
SPECS: Speed: 0.23 sec/60° @ 4.8V or .19 sec/60° @ 6V
Torque: 44.3 oz-in @ 4.8V or 56.8 oz-in @ 6V
Size: 1.59"L x 0.78"W x 1.42"H (40.4x19.8x36mm) w/o output shaft
Weight: 1.31oz (37.2g)
Connector: "J" type with approx. 5" lead
INCLUDES: One S3003 standard servo
REQUIRES: Hardware (servo mounting screws, grommet, eyelets, servo horns)
,use FUTM3551 for accessory package.
Radio system using Futaba "J" type connectors.
COMMENTS: inch (millimeters) ## .60(15) flange to
Side view: 1.42(36) __¦--------¦__ top of
bottom to top ¦ ¦ shaft
of case(not ¦ ¦ 1.0(25) flange to
output shaft) ¦________¦ bottom of
1.59(40.4) servo
¦O¦ ¦O¦
1.90(58)
center-to-center of holes
