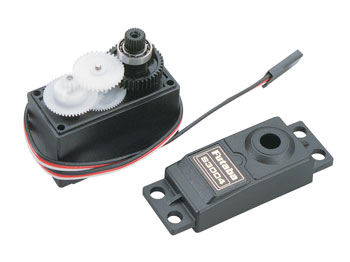

S3004 SERVO STANDARD BB
Sold out
$15.99
SKU FUTM0004
This is the Futaba S3004 Light Weight, Ball Bearing Servo.
This basic servo is used in cars, boats, or where standard servos are used.
Note: This servo is not designed for use with glow-powered helicopters.
This is a replacement for the following servos.(S15)
This servo can produce high-current draw from your batteries.
If using NiMH or LiPo batteries, make sure they are capable
of delivering sufficient amps.
FEATURES: Single ball bearing on output shaft
Precise tight fit throughout the geartrain
Being standard size and lightweight, it fits many applications.
Three pole motor
Nylon gears
One year warranty
INCLUDES: One S3004 standard servo with preinstalled round servo horn(FSH6W)
Four brass eyelets
Four Black one-piece rectangular rubber grommets (FUTM2348)
Four servo mounting screws
Three servo horns (1 lg. round, 1 lg."X" and 1 sm. "x")
SPECS: Speed: 0.23 sec/60° @ 4.8V
0.19 sec/60° @ 6.0V
Torque: 44 oz-in (3.2 kg-cm) at 4.8V
57 oz-in (4.1 kg-cm) at 6.0V
Dimensions: 1.6 x 0.8 x 1.4" (1-9/16 x 13/16 x 1-7/16")
(40 x 20 x 36mm)
Weight: 1.3 ounce (1-5/16oz) (37 grams)
Connector: "J" type with approx. 5" wire
COMMENTS: inch (millimeters) ## .60(15) flange to
Side view: 1.42(36) __¦--------¦__ top of
bottom to top ¦ ¦ shaft
of case(not ¦ ¦ 1.0(25) flange to
output shaft) ¦________¦ bottom of
1.59(40.4) servo
Top view: | ¦O¦ ¦O¦ -
case width 0.78(19.8) ¦ ¦ * ¦ ¦ - holes on-center
| ¦O¦ ¦O¦ - 0.39(10)
1.93(49)
center-to-center of holes
