S3004 SERVO STANDARD BB BULK
Sold out
$12.99
SKU FUTM0027

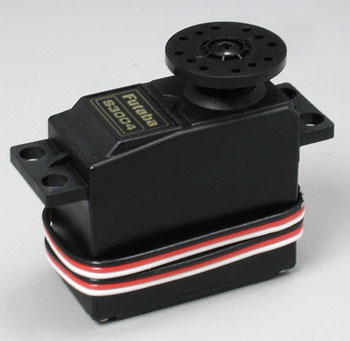

This is the Futaba S3004 Light Weight, Ball Bearing Servo.
This basic servo is used in cars, boats, or where standard servos are used.
Note: This servo is NOT designed for use with glow powered helicopters.
This servo can produce high-current draw from your batteries.
If using NiMH or LiPo batteries, make sure they are capable
of delivering sufficient amps.
FEATURES: Single ball bearing on output shaft
Precise tight fit throughout the geartrain
Being standard size and lightweight, it fits many applications
Nylon gears
One year warranty
INCLUDES: One S3004 standard servo
REQUIRES: Does not include any horns (use FUTM3551 for the horn set)
If mounting hardware is needed, order Screws (FUTM2250), Eyelets
(FUTM3650) and Grommets (FUTM2346)
SPECS: Speed: 0.23 sec/60° @ 4.8V
0.19 sec/60° @ 6.0V
Torque: 44.3 oz-in (3.2 kg-cm) at 4.8V
56.8 oz-in (4.1 kg-cm) at 6.0V
Length: 1.59" (40.4mm)
Width: 0.78" (19.8mm)
Height: 1.42" (36mm)
Weight: 1.30 ounce (38 grams)
Connector: "J" type with approx. 5" wire
COMMENTS: inch (millimeters) ## .60(15) flange to
Side view: 1.42(36) __¦--------¦__ top of
bottom to top ¦ ¦ shaft
of case(not ¦ ¦ 1.0(25) flange to
output shaft) ¦________¦ bottom of
1.59(40.4) servo
Top view: | ¦O¦ ¦O¦ -
case width 0.78(19.8) ¦ ¦ * ¦ ¦ - holes on-center
| ¦O¦ ¦O¦ - 0.39(10)
1.93(49)
center-to-center of holes
