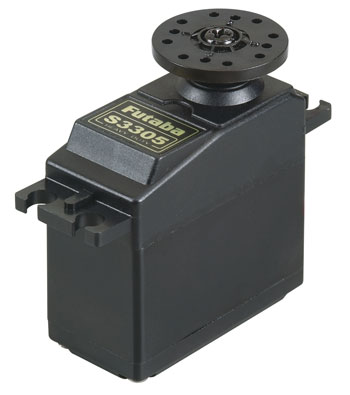

S3305 SERVO STD HT W/MTL GEARS

TECH NOTES This is the Futaba S3305 High Torque, Metal Gear Servo. per Futaba this servo is approved for use with NiCd batteries ONLY! This servo can produce high-current draw from your batteries. If using NiMH or LiPo batteries, make sure they are capable of delivering sufficient amps. FEATURES: Wide usage in cars and boats that require standard size, high torque servos Two ball bearings 3-pole motor Standard Futaba J style connector Metal gears One year warranty INCLUDES: One Futaba S3305 High Torque Metal Gear Servo with 1.5" (39mm) diameter horn, 1.2" (32mm) 6 point horn, 4 eyelets, 4 rubber grommets, and 4 mounting screws SPECS: Dimensions: 1.6 x 0.8 x 1.5" (1-9/16 x 16/16 x 1-1/2") (40 x 20 x 38mm) Weight: 1.7oz (1-11/16oz) (47g) Speed: 0.25 sec/60° @ 4.8V 0.20 sec/60° @ 6V Torque: 124 oz-in (8.9 kg-cm) at 6V 99 oz-in (7.1 kg-cm) at 4.8V COMMENTS: Gear set FUTM3384 Case set FUTM2948 Futaba recommends these for cars and boats.
