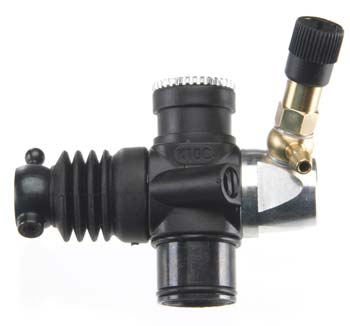

Slide Carb. Complete: K5.9

This is the Complete Slide Valve Carburetor for the HPI HPI Racing K5.9 Engine (HPIG5250). FEATURES: Composite construction three needle carb with hand adjustable high speed needle (the stock carb settings are made flush for convenient "back to factory settings") INCLUDES: One Complete Slide Valve Carburetor for the HPI 5.9cc engine with instruction sheet REQUIRES: Installing on crankcase and connecting throttle linkage Air Filter, HPIC7198 SPECS: Inlet Diameter: 0.43" (11mm) Base Diameter: 0.59" (15mm) Length: 2.3" (60mm) with throttle extended Height: 1.2" (29.7mm) when installed on engine
