Traxxas Grave Digger Monster Truck w/ 2.4 Radio RTR
Sold out
$214.99
SKU TRA3604A
TECH NOTES

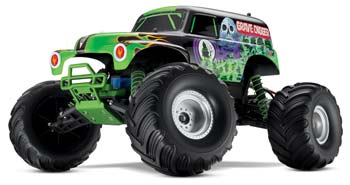

This is the 1/10 scale electric powered, 2.4GHz radio controlled, ready to run,
Traxxas Grave Digger Monster Truck.
**The included TQ 2.4GHz radio system is compatible only with the**
**#6519 receiver and does NOT accept the Docking Base accessory.**
FEATURES: Chassis: Composite nylon tub style
Drive: Rear wheel with telescoping universal-joint driveshafts
Motor: Traxxas Titan modified 12 turn 550 with internal cooling fan
Radio: Traxxas TQ 2.4GHz 2-channel with waterproof steering servo
and micro receiver
ESC: XL-5 with reverse and training mode
Transmission: Brushless ready Magnum 272 metal gear transmission with
rubber sealed ball bearings, and Revo-spec Torque-Control slipper
clutch
Pinion Gears: Two 48 pitch, 19 tooth is installed, 23 tooth included
for higher top speeds
Battery: Traxxas Power Cell 3000mAh 8.4V 7-cell NiMH hump with
high-current connector
Battery Charger: 110V wall charger
Body: Painted and trimmed Grave Digger
Shocks: Oil-filled Ultra
Steering; Single point
Suspension: Long travel
Differential: Steel planetary gears, brushless ready
Tires: 2.8" (71mm) wide Monster Jam
Wheels: Beadlock style Monster Jam
INCLUDES: RTR Traxxas Grave Digger Monster Truck, 2.4GHz radio, 12T motor, ESC,
painted body, 19 and 23 tooth pinion gears, decals, battery,
charger and instruction manual
REQUIRES: AA Batteries: Four for transmitter
SPECS: Length: 16.25" (413mm)
Front and Rear Track: 12.75" (324mm) distance between outer edges of
tires side to side
Weight: 65.3oz (1.85kg)
Maximum Height: 8.75" (222mm)
Wheelbase: 10.63" (270mm)
COMMENTS: For replacement or to upgrade to Ball Bearings use:
Quantity Size Location Order Stock Number
4 5x11mm Front Hubs 2 DTXC1547
4 5x11mm Rear Hubs 2 DTXC1547
6 5x11mm Transmission 3 DTXC1547
